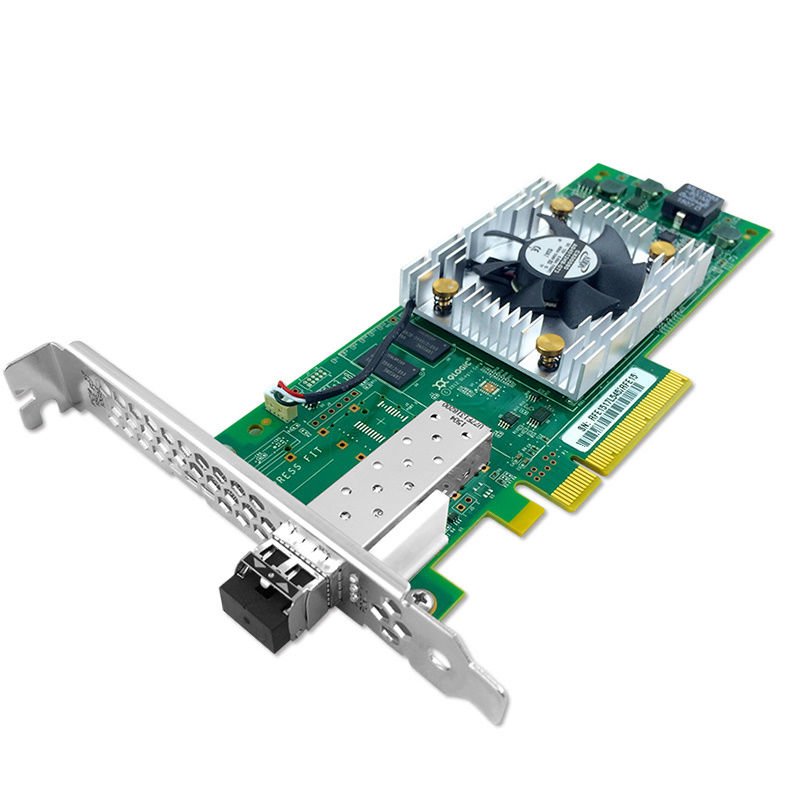

Qlogic QLE2670 Single Port 16GbE Fibre Channel FC HBA

 Qlogic QLE2670-CK PCIe 3.0 x8 Single-port 16GFC SR-Optic Low Profile 16Gb Fibre Channel Adapter

Bus Interface

• PCI Express® 3.0 x4 and 2.0 x8 (x8 physical connector)
• Host Interrupts
• INTx and MSI-X



  Compliance

• PCI Express Base Specification, Rev. 3.0
• PCI Express Card Electromechanical Specification, Rev. 3.0
• PCI Bus Power Management Interface Specification, Rev. 1.2
• Fibre Channel Specifications

Throughput

• 1,600MBps line rate per port (maximum)
• Logins
• Support for 2,048 concurrent logins and 2,048 active exchanges
• Expandable to 16K concurrent logins and 32K active exchanges
• Port Virtualization
• NPIV

Compliance

• Fibre Channel Tape (FC-TAPE) Profile
• Fibre Channel Protocol – 4 (FCP-4)
• SCSI Architecture Model – 5 (SAM-5)
• SCSI Primary Commands – 5 (SPC-5)
• SCSI Block Commands – 4 (SBC-4)
• Fibre Channel Generic Services – 8 (FC-GS-8)
• Fibre Channel Framing and Signaling – 5 (FC-FS-5)
• Fibre Channel Link Services – 4 (FC-LS-4)
• Fibre Channel Physical Interface – 5 (FC-PI-5)

Physical Specifications

• QLE2670: single-port 16GFC
• QLE2672: dual-port 16GFC

QLE2670 (Single-port)

• Ships with SR optical transceivers and
• standard height bracket installed
• Ships with spare low profile bracket

QLE2672 (Dual-port)

• Ships with SR optical transceivers and
• standard height bracket installed
• Ships with spare low profile bracket
