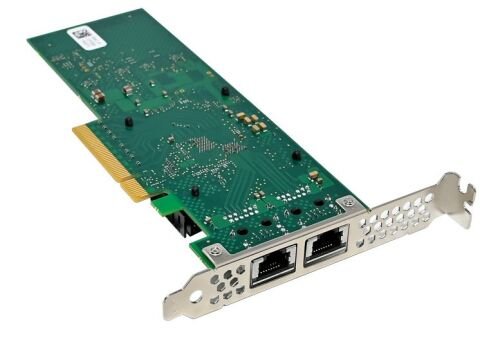

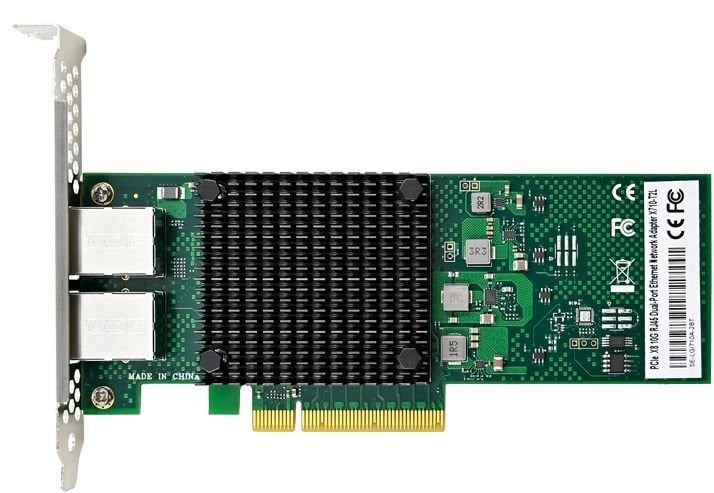

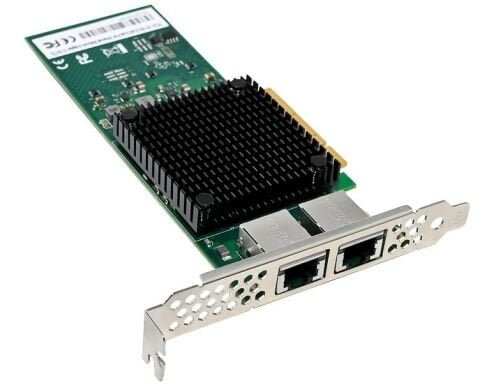

Intel X710-T2L Dual / 2 Port 10GbE PCI-E X8 Ethernet Kart - StorNET

Intel X710-T2L Dual / 2 Port 10GbE PCI-E X8 Ethernet Kart - StorNET

Name: X710T2L - RJ45 Ethernet kartı | 10 Gigabit
Brand: StorNET
SKU: X710T2L
Price: 9225.00 TRY
Availability: InStock
Rating: 4.8 (526 reviews)

Intel X710-T2L Dual / 2 Port 10GbE PCI-E X8 Ethernet Kart - StorNET

11.070,00 TL KDV dahil.

Kategori

RJ45 Ethernet kartı | 10 Gigabit , Projeniz için Ürünler

Marka

StorNET

Stok Kodu

X710T2L

Garanti Süresi

24 Ay

Ürün Durumu

Sadece Yeni ve Orjinal Kutulu Ürün satıyoruz.

Fiyat

11.070,00 TL KDV dahil.

Gelince Haber Ver

Yorum Yaz

Fiyat Alarmı

Karşılaştır

Ürün Bilgisi

Teknik Detay

Tamamlayıcı Ürünleri

Kurumsal Fiyat Teklifi

Ethernet Kartı NBASE-T 10GBASE-T intel ChipSet X710-T2L Dual Port

▪ PCI Express (PCIe) v3.0, x8

▪ Energy Efficient Ethernet (EEE) / IEEE 802.3az enabled

▪ Backward compatible with multi-speed support for 5/2.5/1GbE, 10GBASE-T, and 100BASE-TX

▪ Network Virtualization offloads including VxLAN, GENEVE, NVGRE, MPLS, and VxLAN-GPE with Network Service Headers (NSH)

▪ Intel® Ethernet Flow Director for hardware-based application traffic steering

▪ Dynamic Device Personalization (DDP) enables increased packet processing efficiency for NFV and Cloud deployments

▪ Data Plane Development Kit (DPDK) optimized for efficient packet processing

▪ Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)

▪ I/O virtualization innovations for maximum performance in a virtualized server

Specification

• PCI-Express host interface specification v3.0 with 8GT/s Bus width and backward compliant with 2.0 and 1.x

• PCI-Express interface: x8

• Complies with Dual 10GbE RJ45 port

• Integrate BASE-T ports capable of operating at 100/1G/2.5G/5G/10GBASE-T

• Full-duplex operation at all supported speeds

• Maximize link capacity when operating at 10Gb/s link with packets larger than 128 bytes at full duplex traffic

• PCI-SIG SR-IOV implementation 128 per device

• Supports Receive-side scaling (RSS)

• Supports Jumbo Frames up to 9K

• Supports Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities

• Next-generation VMDQ up to 256 maximum VMDQ VMs supported

• Virtual machine load balancing

• Advanced packet filtering

• VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags

Intel X710-T2L Dual / 2 Port 10GbE PCI-E X8 Ethernet Kart - StorNET genel Özellikleri

Slot Demirler	:	Low Profile ( Kısa Demir ), Full Height ( Uzun Demir )
Port Tipi	:	RJ-45
Transfer Hızı	:	10 Gbps / Her Port
Port Sayısı	:	2 Port Dual
Marka	:	StorNET
Bus type	:	PCIe Gen3x8
ChipSet	:	intel
PoE tipi	:	PoE yok
Teknoloji	:	Ethernet Kart

Essentials
Product Collection	Intel X710T2L 10GbE Network Adapter
Controller Processors	Intel X710-AT2
Bus Type/Bus Width	PCI Express (PCIe) 3.0 x8
Connections	2 x RJ45 Copper
Data Rate Supported	10GbE/5GbE/2.5GbE/1GbE/100Mb
Transmission Media RJ45 Copper	2.5GBASE-T and 5GBASE-T: 100 m using CAT5e, CAT6, or CAT6A
	10GBASE-T: 55 m using CAT6, 100 m using CAT6A
	100BASE-TX and 1000BASE-T: 100 m using CAT5e, CAT6, or CAT6A
Bracket	Low Profile and Full Height
Dimension	167 mm x 69 mm (PCIe Board)


Technical Specifications
Interrupt Levels	INTA, MSI, MSI-X
Manageability	PXE, UEFI, SNMP
Virtualization Technology	VMDQ, PCI-SIG, SR-IOV, Virtual machine load balancing advanced packet filtering, VLAN, VxLAN, GENEVE, NVGRE, MPLS, VxLAN -GPE, NSH



System Requirements
Windows Client	Windows 11/ 10
Windows Sever	2008/ 2012/ 2016/ 2019/ 2022
Linux	RHEL7.9/ 8.4/ 8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/ 20.04LTS, FreeBSD 12.2/ 13
Environment & Certification
Power Consumption	Max. 9.6W
Airflow	Dual Port: 100 m: 35 °C to 40 °C, 350-400 recommended LFM
Storage Humidity Maximum	90% non-condensing relative humidity at 35 °C
Storage Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Operating Temperature	0 °C to 55 °C (32 °F to 131 °F)
LED Indicators	LINK (Green = 10Gbps; Yellow = 5/2.5/1Gbps; OFF = 100Mbps)
LED Indicators	ACT (Blinking Green = transmitting or receiving data; OFF = no link)
Certifications	CE FCC RoHS
