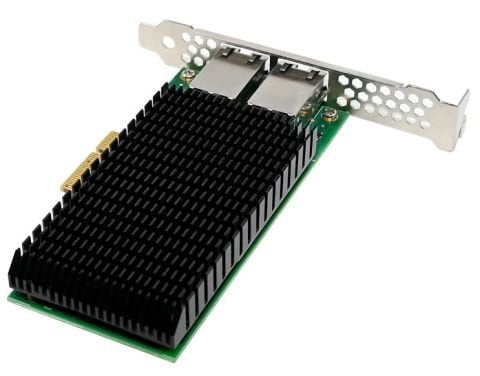

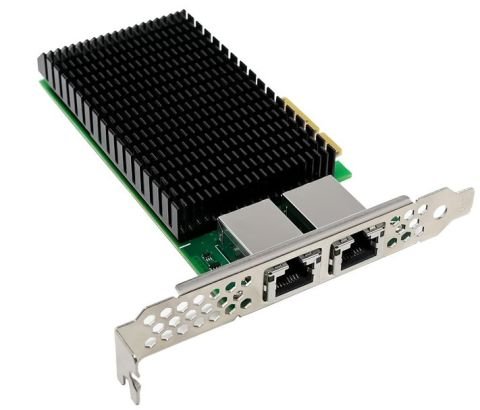

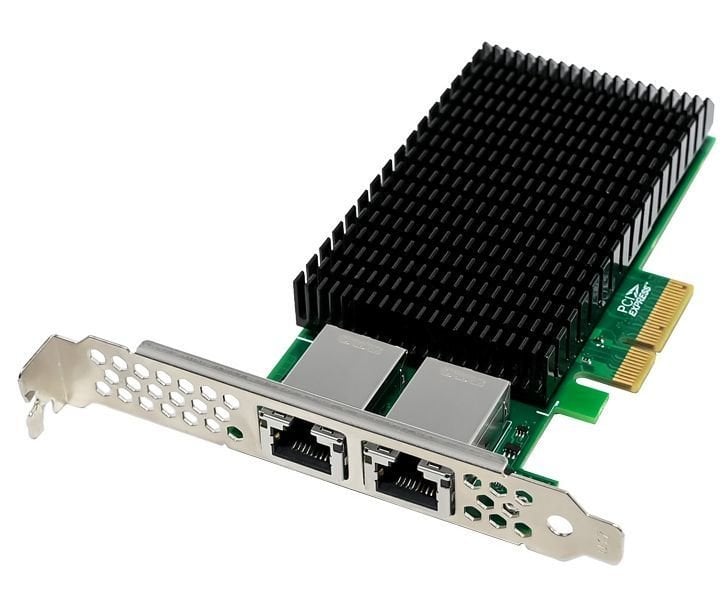

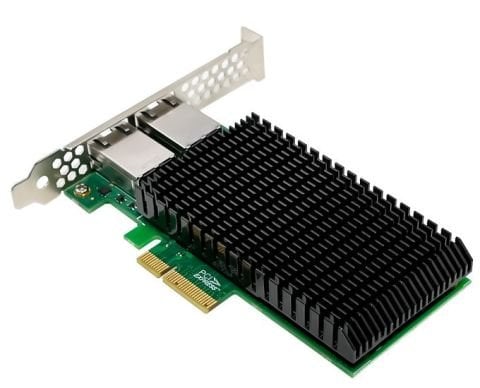

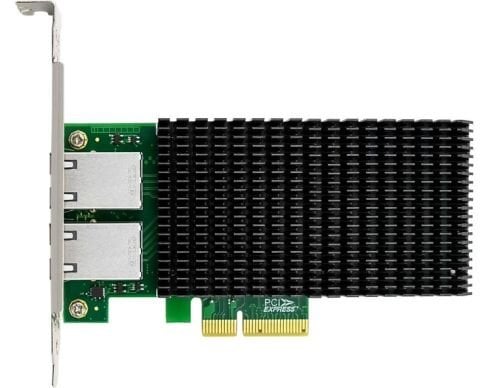

Ethernet Kartı Intel X550-T2 x4 Dual / 2 Port 10GBE | StorNET
Pci Express x4 Slot Uyumlu Versiyondur.
Ethernet Kartı Intel X550-T2 x4 Dual / 2 Port 10GBE Teknik Özellikleri
- • PCI-Express host interface specification v3.0
- • Complies with PCI Bus Power Management Interface Specification Rev1.2
- • PCI-Express lanes: x4
- • Complies with dual port 10GbE RJ45 copper port
- • Operate Speeds: 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s, 100Mb/s
- • 10GBASE-T as per the IEEE 802.3an standard
- • 1000BASE-T and 100BASE-TX as per the IEEE Standard 802.3-2012
- • NBASE-T as per the IEEE P802.3bz/D1.1 Draft Standard for Ethernet Amendment
- • Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds
- • Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN
- • Supports Receive-side scaling (RSS)
- • Supports IPv 4, IPv 6 protocols
- • Supports Jumbo Frames up to 15.5K
- • Supports UDP.TCP and IP Checksum offloading
- • 128 transmit queues
- • Statistics for management and RMON
- • Support for 64 virtual machines per port (64VMs x2 queues)
- • Support for Data Center Bridging(DCB) (802.1Qaz, 802.1Qbb, 802.1p)
- • Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
Ethernet Kartı Intel X550-T2 x4 Dual / 2 Port 10GBE | StorNET genel Özellikleri
| Slot Demirler | : | Low Profile ( Kısa Demir ), Full Height ( Uzun Demir ) |
| Port Tipi | : | RJ-45 |
| Transfer Hızı | : | 10 Gbps / Her Port |
| Port Sayısı | : | 2 Port Dual |
| Marka | : | intel, StorNET |
| Bus type | : | PCIe 3.0 x4 |
| ChipSet | : | intel |
| PoE tipi | : | PoE yok |
|
Essentials |
|
|
Product Collection |
Intel X550-T2 10GbE Network Adapter |
|
Controller Processors |
Intel ELX550-AT2 |
|
Bus Type/Bus Width |
PCIe 3.0 (8 GT/s), x4 lane PCIe, operable in x8 and x16 slots |
|
Connections |
2 x RJ45 Copper |
|
Data Rate Supported |
10GbE/5GbE/2.5GbE/1GbE/100Mb |
|
Cable Distances |
10GBASE-T: 100 m using CAT6A, 55 m using CAT6 |
|
1000BASE-T: 100 m using CAT5e, CAT6 or CAT6A |
|
|
Bracket |
Full-height bracket installed. Low-profile bracket included in package
|
|
Dimension |
130 mm x 69 mm (PCIe Board) |
|
Technical Specifications |
|
|
Network Standards |
10GBASE-T as per the IEEE 802.3an standard |
|
1000BASE-T and 100BASE-TX as per the IEEE Standard 802.3-2012 |
|
|
NBASE-T as per the IEEE P802.3bz/D1.1 Draft Standard for Ethernet Amendment |
|
|
Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds |
|
|
Interrupt Levels |
INTA, MSI, MSI-X |
|
Manageability |
Wired for Management (WfM) Baseline v2.0 Enabled for Servers |
|
DMI 2.0 support, Windows Management Instrumentation (WMI) and SNMP |
|
|
Remote Installation Services (RIS) |
|
|
PXE 2.0 enabled through boot Read-Only Memory (ROM) |
|
|
Virtualization Technology |
Multi-mode I/O virtualization operations, VxLAN stateless offloads, NVGRE stateless offloads, Virtual Machine Device Queues (VMDq) |
|
System Requirements |
|
|
Windows Client |
Windows 11/ 10/ 8.1/ 8/ 7 |
|
Windows Sever |
2008 R2/ 2012/ 2012 R2/ 2016/ 2019/ 2022 |
|
Linux |
RHEL7.9/ 8.4/ 8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/ 20.04LTS, FreeBSD 12.2/ 13
|
|
Environment & Certification |
|
|
Power Consumption |
Max. 13W |
|
Storage Humidity Maximum |
90% non-condensing relative humidity at 35 °C |
|
Storage Temperature |
-40 °C to 70 °C (-40 °F to 158 °F) |
|
Operating Temperature |
0 °C to 55 °C (32 °F to 131 °F) |
|
LED Indicators |
LINK (solid) and ACTIVITY (blinking)
|
|
LINK SPEED (Green = 10Gbps; Yellow = 1Gbps; OFF=100 Mbps) |
|
|
Certifications |
CE FCC RoHS |
