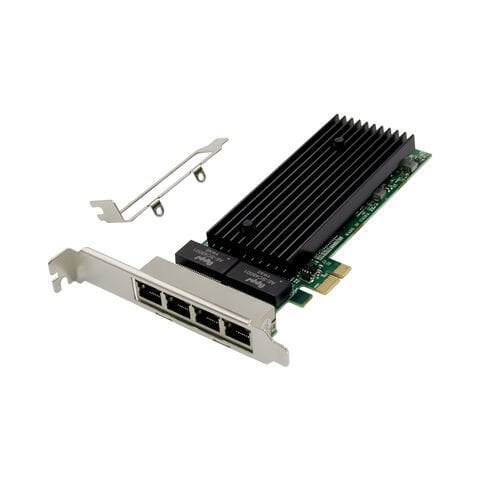

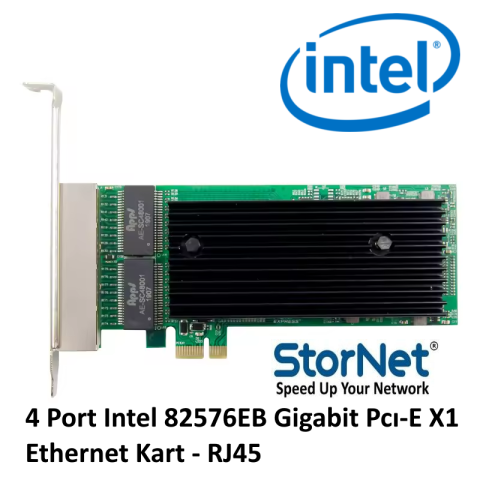

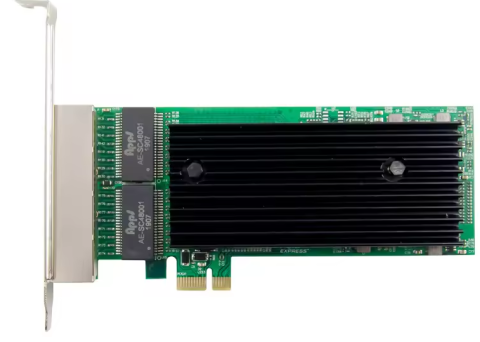

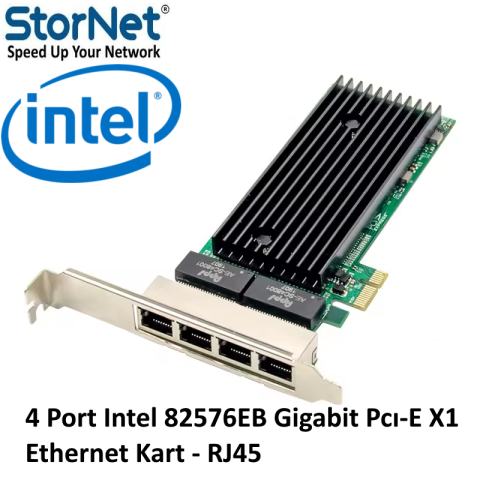

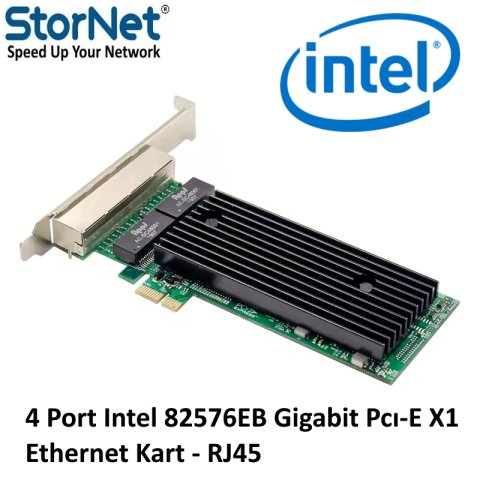

4 Port Intel 82576EB Gigabit Pcı-E X1 Ethernet Kart StorNET
- - Chipset: Intel JL82576EB
- - PCI-Express host interface specification v2.0 with 2.5GT/s BUS width
- - PCI-Express lanes: x1
- - MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab)
- - Serializer-Deserializer (SERDES) to support 1000Base-SX/X/LX (optical fiber) for Gigabit backplane applications.
- - Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN
- - Supports Receive-side scaling (RSS)
- - Supports IPv 4, IPv 6 protocols
- - Supports Jumbo Frames up to 9.5K
- - Supports UDP.TCP and IP Checksum offloading
- - Statistics for management and RMON
- - Support for virtual machines device queues
- - Queues per port: 16 TX queues and 16 RX queues Full-Spectrum Security
- - Next Generation VMDq Support (8VMs)
- - Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
| Essentials | |
| Product Collection | Intel GbE Ethernet Server Adapter |
| Controller Processors | Intel JL82576EB |
| Bus Type/Bus Width |
PCI Express* 2.0 (2.5 GT/s) x1-lane, operable in x4, x8 and x16 slot |
| Connections | 4 x RJ45 Copper |
| Data Rate Supported | 10/100/1000 Mbps (Copper), 1000 Mbps (Fiber) |
|
Cable Distances |
Copper: up to 100 m |
|
Category-3 or higher for 10BASE-T operation Category-5 or higher for 100BASE-TX operation Category-5e or higher for 1000BASE-T operation |
|
|
Fiber: MMF 62.5/50 um |
|
|
Bracket |
Full-height bracket installed. Low-profile bracket included in package |
| Dimension |
158 mm x 69 mm (PCIe Board) |
| Technical Specifications | |
|
IEEE standard/ Network topology |
MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab) |
|
Serializer-Deserializer (SERDES) to support 1000Base-SX/X/LX (optical fiber) for Gigabit backplane applications. |
|
| Interrupt Levels | INTA, INTB, INTC, INTD, MSI, MSI-X |
| System Requirements | |
| Windows Client | Windows 10/ 8.1/ 8/ 7 |
| Windows Sever | 2008 R2/ 2012/ 2012 R2/ 2016/ 2019 |
| Linux |
RHEL7.9/ 8.4/ 8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/ 20.04LTS, FreeBSD 12.2/ 13 |
| Environment & Certification | |
|
Power consumption (typical) |
Copper: 82576T2- W 82576T4- W |
| Fiber:
82576F2- W 82576F1- W |
|
| Storage Humidity Maximum | 90% non-condensing relative humidity at 35 °C |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
|
Connect Speed LED Indicators |
Not illuminated=10 Mb/s; green=100 Mb/s; amber=1 Gb/s (Copper) |
| Green=1 Gb/s. Not illuminated=no link (Fiber) | |
| Certifications | CE FCC RoHS |
4 Port Intel 82576EB Gigabit Pcı-E X1 Ethernet Kart StorNET genel Özellikleri
| Slot Demirler | : | Low Profile ( Kısa Demir ), Full Height ( Uzun Demir ) |
| Port Tipi | : | RJ-45 |
| Transfer Hızı | : | 1.25 Gbps / Her Port |
| Port Sayısı | : | 4 Port Quad |
| Marka | : | intel, StorNET |
| Bus type | : | PCI-Express x1 |
| ChipSet | : | intel |
| PoE tipi | : | PoE yok |
